Deploy OpenLDAP + LDAP Account Manager (LAM) with Docker (Complete Guide)

This guide walks you through deploying an OpenLDAP server using Docker, along with a web-based management interface provided by LAM (LDAP Account Manager).

1. Overview

This deployment includes:

• OpenLDAP (directory service)
• LAM (web-based management interface)
• Docker-based deployment (easy to install and maintain)

Use cases:

• Centralized user authentication
• NAS / SMB / FTP integration
• Enterprise user and permission management

2. Requirements

• Docker Engine and Docker Manager must be installed
• Ports 389 and 8080 must be available

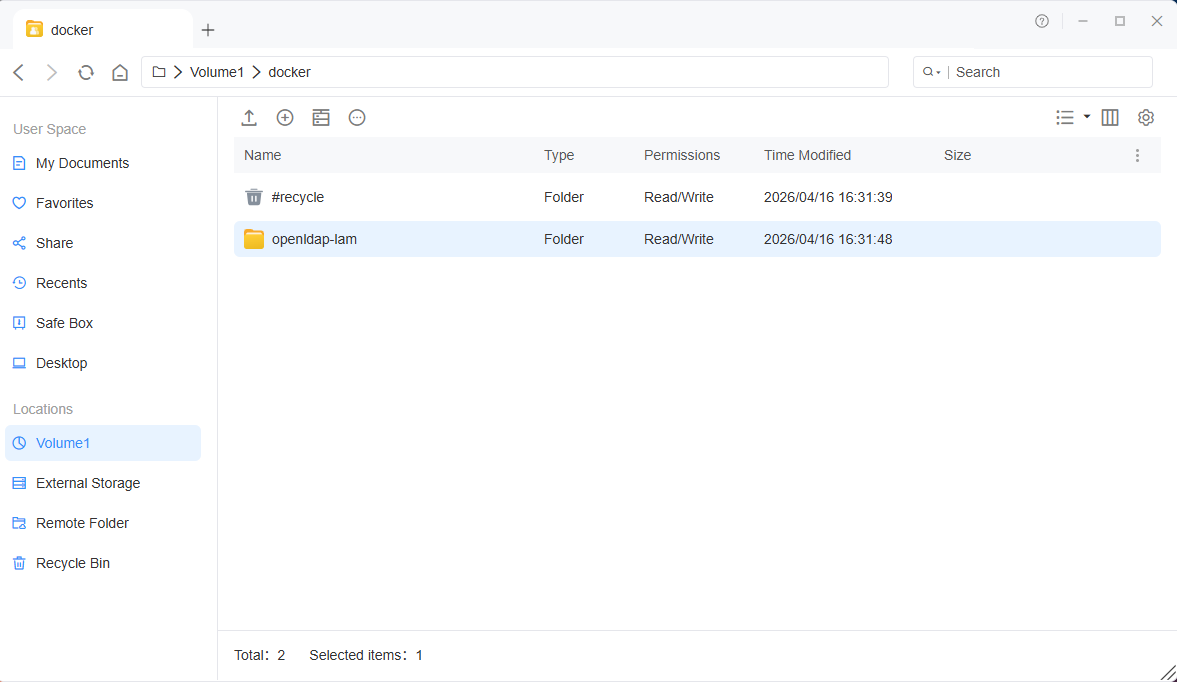

3. Prepare Directory

Create a working directory:

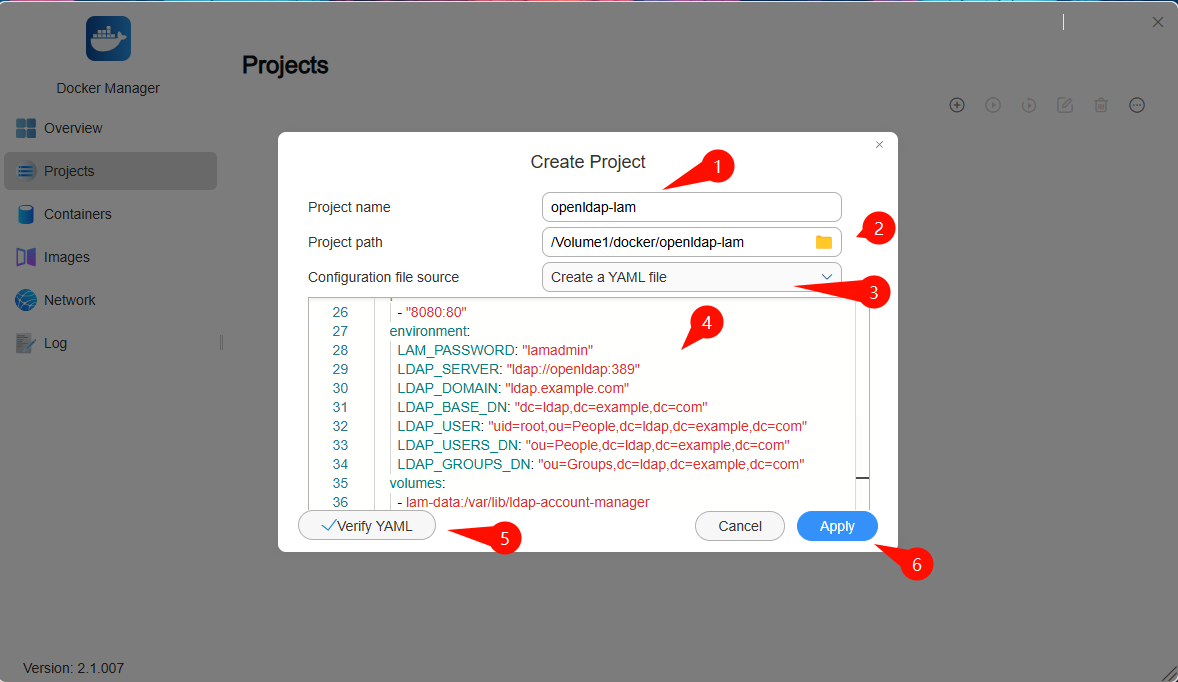

4. Docker Compose Configuration

Code: Select all

services:
openldap:
image: vegardit/openldap:latest
container_name: openldap
restart: unless-stopped
environment:
LDAP_INIT_ORG_DN: "dc=ldap,dc=example,dc=com"
LDAP_INIT_ORG_NAME: "Example Inc"
LDAP_INIT_ROOT_USER_DN: "uid=root,ou=People,dc=ldap,dc=example,dc=com"
LDAP_INIT_ROOT_USER_PW: "Admin@123"
LDAP_INIT_ALLOW_CONFIG_ACCESS: "false"
LDAP_INIT_PPOLICY_PW_MIN_LENGTH: "8"
ports:
- "389:389"
volumes:
- ./openldap-data:/var/lib/ldap
- ./openldap-config:/etc/ldap/slapd.d

lam:
image: ghcr.io/ldapaccountmanager/lam:stable
container_name: lam
restart: unless-stopped
depends_on:
- openldap
ports:
- "8080:80"
environment:
LAM_PASSWORD: "lamadmin"
LDAP_SERVER: "ldap://openldap:389"
LDAP_DOMAIN: "ldap.example.com"
LDAP_BASE_DN: "dc=ldap,dc=example,dc=com"
LDAP_USER: "uid=root,ou=People,dc=ldap,dc=example,dc=com"
LDAP_USERS_DN: "ou=People,dc=ldap,dc=example,dc=com"
LDAP_GROUPS_DN: "ou=Groups,dc=ldap,dc=example,dc=com"
volumes:
- lam-data:/var/lib/ldap-account-manager

volumes:
lam-data:

Parameter Notes (Modify for Your Environment)

The configuration in this guide is only an example. Do NOT use it directly in a production environment. Adjust it according to your setup.

Parameters that must be modified:

• LDAP_INIT_ORG_DN: Base DN
• LDAP_DOMAIN: Domain name (use your real domain)
• LDAP_INIT_ROOT_USER_PW: Admin password
• LDAP_USER: Admin DN

Examples:

Default in this guide:

Code: Select all

dc=ldap,dc=example,dc=com

If your domain is `example.com`:

Code: Select all

dc=example,dc=com

If your domain is `nas.company.local`:

Code: Select all

dc=nas,dc=company,dc=local

Admin DN example:

Code: Select all

uid=root,ou=People,dc=nas,dc=company,dc=local

Common mistakes:

• Using the example DN directly
• Not changing the default password
• Mismatch between Base DN and LDAP_DOMAIN

Recommendations:

• Plan your domain structure in advance
• Define OU structure (People / Groups)
• Always change default passwords in production

The first startup may take 10–30 seconds for initialization.

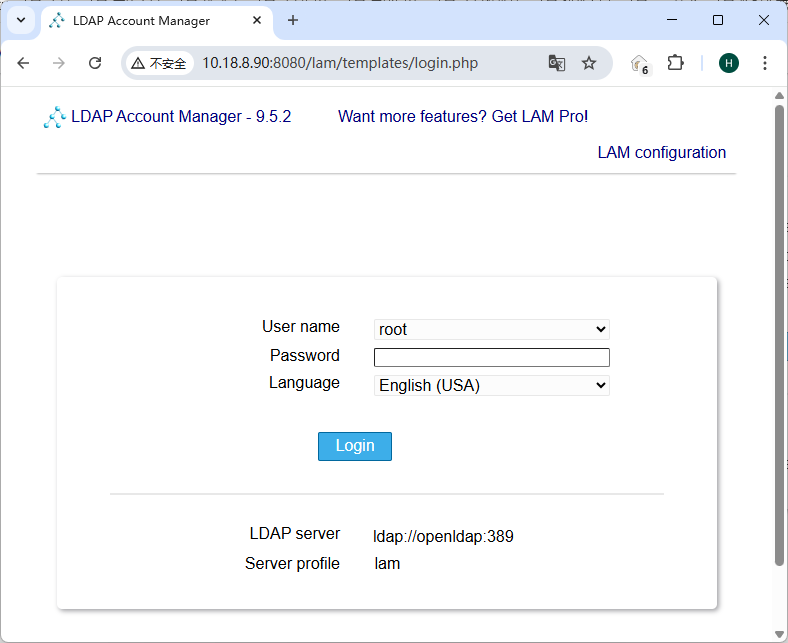

5. Access LAM Web UI

Open in your browser:

Code: Select all

http://YOUR_IP:8080

Default login credentials:

• Username: admin (LAM web UI account)
• Password: lamadmin

6. LDAP Connection Configuration

If login fails, configure the LDAP connection manually in LAM:

• LDAP Server: ldap://openldap:389
• Base DN: dc=ldap,dc=example,dc=com
• Admin DN: uid=root,ou=People,dc=ldap,dc=example,dc=com (full DN required)
• Password: Admin@123

7. LAM Operation Guide (Users & Groups)

Should you create groups before users?

Recommended: Create groups first, then users

Reason:

• Each user must have a primary group
• Avoid missing gidNumber issues
• Required for Linux / NAS authentication

Step 1: Create Group

• Go to Groups → New Group
• Group name: e.g. users
• GID Number: auto or manually assigned
• Save

Step 2: Create User

• Go to Users → New User
• User name: e.g. test
• UID Number: auto or manual
• Primary group: select users
• Home directory: /home/test
• Set password
• Save

Step 3: Verify

• Check the user exists in the Users list
• Check the user is assigned to the group

Important Notes:

• Without a group, gidNumber may be missing
• Login depends on uidNumber + gidNumber
• Use UID/GID starting from 10000

Recommended structure:

Code: Select all

ou=People
ou=Groups

8. Troubleshooting

Cannot connect to LDAP

• Check the container name (openldap)
• Ensure both containers are in the same Docker network
• Check port 389 availability

Invalid credentials

• Use the full DN (not just username)
• Check DN format carefully

9. Best Practices

• Use a real domain (dc=company,dc=com)
• Enable LDAPS in production
• Backup /var/lib/ldap regularly
• Avoid using the root DN for applications

10. Summary

You now have:

• A working LDAP server
• A web-based management UI
• A Docker-based deployment

Ready for integration with:

• NAS authentication
• SMB / FTP login
• Enterprise SSO systems

Feel free to ask if you have any questions
