What Is a Thunderbolt DAS?
A Thunderbolt DAS (Direct Attached Storage) is a single or multi-bay external storage enclosure that connects directly to computers via Thunderbolt 3/4/5 interfaces. Unlike NAS that relies on network transmission, Thunderbolt DAS mounts directly to systems as local storage through dedicated PCIe lanes, delivering high throughput, ultra-low latency, and plug-and-play convenience. Equipped with multiple HDD/SSD bays, it combines massive storage capacity and fast direct transmission for professional creative workflows.
Why High-Speed DAS Matters for Video Creators
4K/8K raw video, multi-camera footage and complex editing projects demand stable, fast read/write performance. Mac Minis and Mini PCs feature compact designs but limited internal storage and no expansion space, easily saturating internal SSD bandwidth during intensive video editing.
Mac Mini M2 editors working with 4K drone footage often face full internal storage and lag from slow USB drives. A Thunderbolt DAS for Mac Mini provides high-throughput direct storage to ensure smooth editing. Similarly, Mini PC users suffer from slow project loading with outdated USB 3.0 external drives; a Thunderbolt DAS effectively eliminates such storage bottlenecks.
TerraMaster TD2 Thunderbolt 3 enclosures offer 40Gbps bandwidth, achieving 900–1000 MB/s real-world read/write speeds in RAID0 configuration. This outperforms standard USB 3.0 SSDs (max 400 MB/s) and single HDD drives, ensuring smooth real-time playback and high-res video editing with reduced latency.

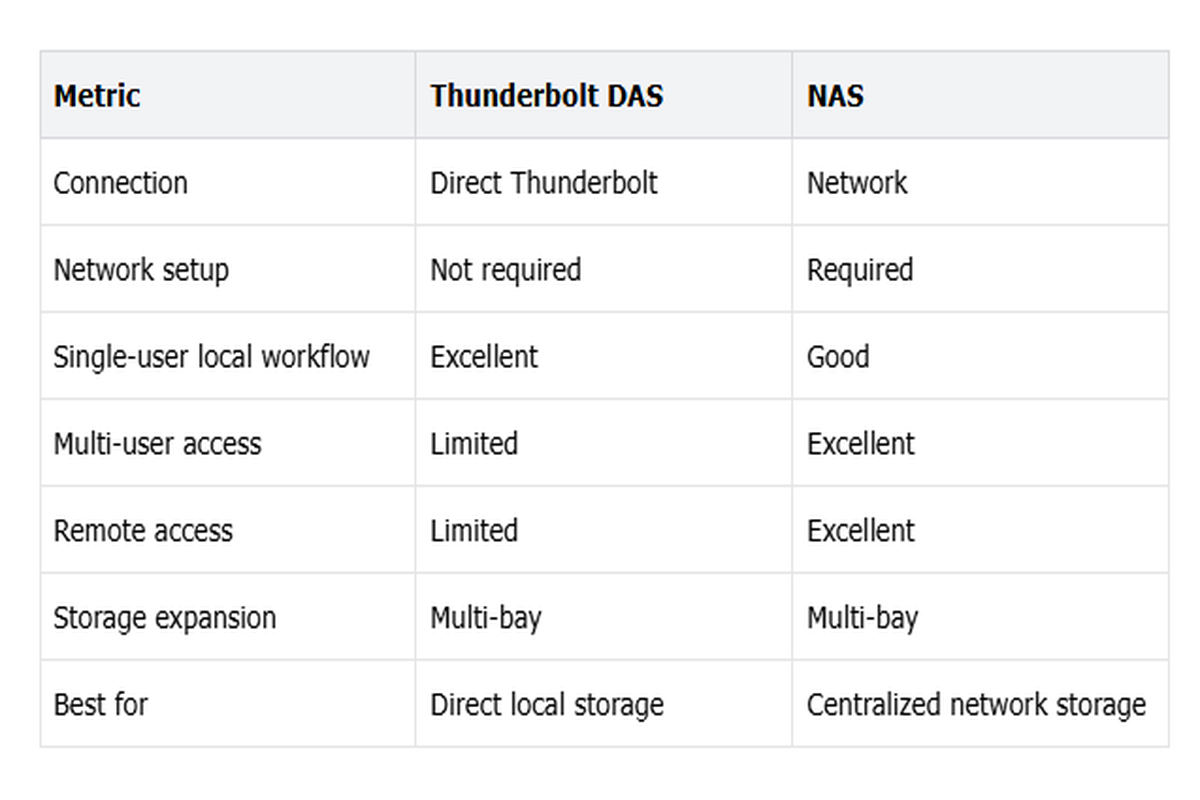

Thunderbolt DAS vs. NAS
Though both solve storage shortages, Thunderbolt DAS and NAS serve distinct usage scenarios:
Thunderbolt DAS is the simpler, faster option for single-workstation local storage. NAS is ideal for multi-user sharing, remote access and centralized network storage.
Thunderbolt DAS vs. External SSD
While both deliver high speeds, multi-bay Thunderbolt RAID enclosures and portable SSDs cater to different creative needs:
Capacity & Expandability: Multi-bay Thunderbolt DAS supports long-term large-scale archiving. TerraMaster D5 TB3 reaches up to 120TB (5×24TB) with flexible RAID configurations, while portable SSDs are limited to a maximum of 8TB single-drive capacity.
RAID Performance: Multi-drive RAID0 configuration in Thunderbolt DAS boosts throughput significantly. The D5 Thunderbolt hits 1035 MB/s read speed, offering far more cost-effective large-capacity storage than standalone high-speed NVMe drives.
Scalability: TerraMaster Thunderbolt DAS can start with JBOD/RAID1 and be upgraded to RAID5 later for data redundancy, adapting to growing storage needs.
Portability vs. Stability: Portable SSDs like the D1 SSD Pro are compact but lack multi-drive flexibility. Desktop Thunderbolt DAS provides stable, scalable long-term storage for fixed workstations.
Understanding Thunderbolt Generations (3, 4, 5)
Different Thunderbolt generations deliver varied performance, with full backward and forward compatibility across devices:
Thunderbolt 3: 40Gbps bandwidth, widely compatible with Mac and Windows devices.
Thunderbolt 4: Same 40Gbps bandwidth as TB3, with stricter standards for display output and PCIe transmission stability.
Thunderbolt 5: Up to 80Gbps bidirectional bandwidth (120Gbps boost mode), perfect for 8K video workflows and high-speed NVMe storage.
Advantages of Thunderbolt DAS for Mini PC & Mac Mini
Thunderbolt DAS greatly improves workstation productivity with core strengths:
High Bandwidth: 40Gbps Thunderbolt 3/4 bandwidth far exceeds conventional USB connections, delivering faster and more stable storage performance.
Daisy-Chaining: Dual-port design supports up to 6 daisy-chained Thunderbolt devices, letting users connect DAS, backup drives and monitors via one port.
Cross-Platform Compatibility: Plug-and-play on macOS, Windows and Linux. exFAT formatting enables seamless cross-system file transmission.
No Network Dependency: Direct computer connection avoids network latency, ensuring fast, stable local storage access.
For Mac Mini storage expansion, check our guide to Mac Mini external storage. For Mini PC home server builds, explore our guide to building a Mini PC home server with TerraMaster DAS.
TerraMaster Storage Product Recommendations

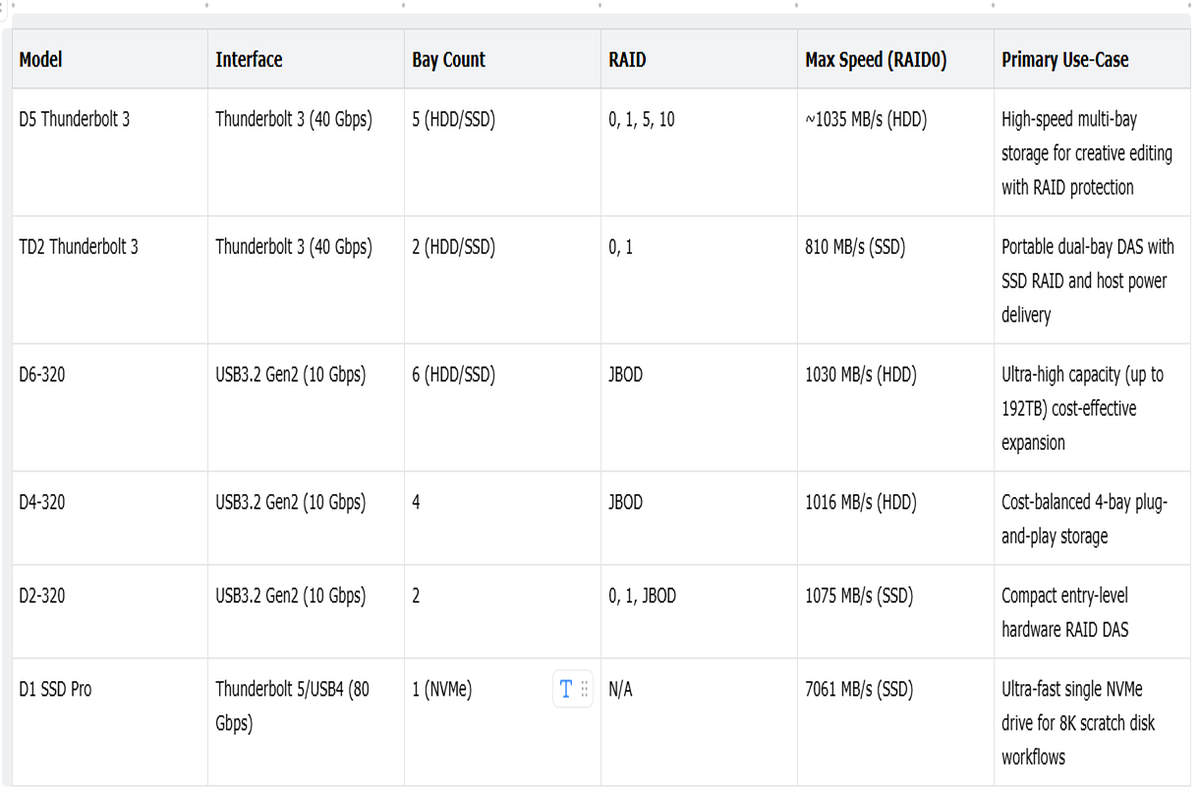

Below is a comparison of TerraMaster’s Thunderbolt and USB DAS series for targeted selection:
Thunderbolt DAS Core Models
D5 Thunderbolt 3: The top choice for Premiere Pro and DaVinci Resolve heavy workflows. It supports flexible HDD/SSD collocation and RAID5 for drive failure protection.
TD2 Thunderbolt 3: Compact 2-bay design for desktop use, supporting dual-SSD RAID0/1 for high-speed daily editing tasks.
USB DAS Budget Alternatives
D6-320/D4-320/D2-320 are affordable USB 3.2 Gen2 options for high-capacity storage. Compatible with Thunderbolt hosts via USB-C, they run at standard USB speeds for cost-effective expansion.
Portable Thunderbolt SSD
D1 SSD Pro: Leverages Thunderbolt 5/USB4 high bandwidth, ideal for 8K video capture and high-speed scratch disk tasks.
Key Considerations When Choosing a Thunderbolt DAS
Connectivity: Ensure your device has a genuine Thunderbolt port (lightning logo) and complete drivers for full-speed performance.
RAID vs. JBOD: RAID0 maximizes speed without redundancy; RAID1/RAID5 provides data protection. JBOD supports independent single-drive use. Note: RAID is not a backup—always keep independent file copies.
Cooling & Noise: Premium TerraMaster DAS adopts intelligent thermal fans to balance heat dissipation and low noise during editing.
Cabling: Use official certified Thunderbolt cables; ordinary USB-C charging cables cannot support high-speed data transmission.
Frequently Asked Questions About Thunderbolt DAS
What is a Thunderbolt DAS?
A Thunderbolt DAS is an external storage enclosure connecting directly to computers via Thunderbolt interfaces, delivering fast, network-free local storage access.
Is Thunderbolt DAS faster than USB DAS?
Yes. Thunderbolt 3/4 (40Gbps) offers four times the bandwidth of USB 3.2 Gen2 (10Gbps), with actual speeds determined by drives and RAID configuration.
Is Thunderbolt DAS better than NAS?
No universal superiority. Thunderbolt DAS suits single-user high-speed local workflows; NAS excels at multi-user sharing and remote network access.
Can I use Thunderbolt DAS with Mac Mini/Mini PC?
Yes, compatible with all Thunderbolt-equipped Mac Minis and Mini PCs with the correct drivers installed.
Do I need RAID for Thunderbolt DAS?
Optional. RAID boosts speed or adds redundancy; JBOD is sufficient for basic independent storage needs.
Is RAID a backup?
No. RAID only prevents drive failure loss, not accidental deletion, corruption or malware damage. Independent backups are mandatory.
Conclusion and Next Steps
Thunderbolt DAS delivers high-speed, scalable local storage for Mac and Mini PC creative users. Its multi-bay design and flexible RAID configurations outperform portable single drives, perfectly fitting video editing, media archiving and backup workflows. Proper file system formatting and RAID setup maximize hardware performance. For detailed installation, RAID initialization and optimization steps, check out our Thunderbolt DAS setup guide.
